Product Description
The PowerRack ground mount system is a revolutionary ground mount technology for versatile solar PV applications. The non-penetrating, tool-less, rapid assembly dramatically reduces installation time, complexity, and cost, enabling efficient and flexible project deployment.
Disclaimer: Every design will result in 2 racks (tubs) per module. Rack sharing designs will be coming soon.
- Fully Pre-Assembled– no field fabrication necessary

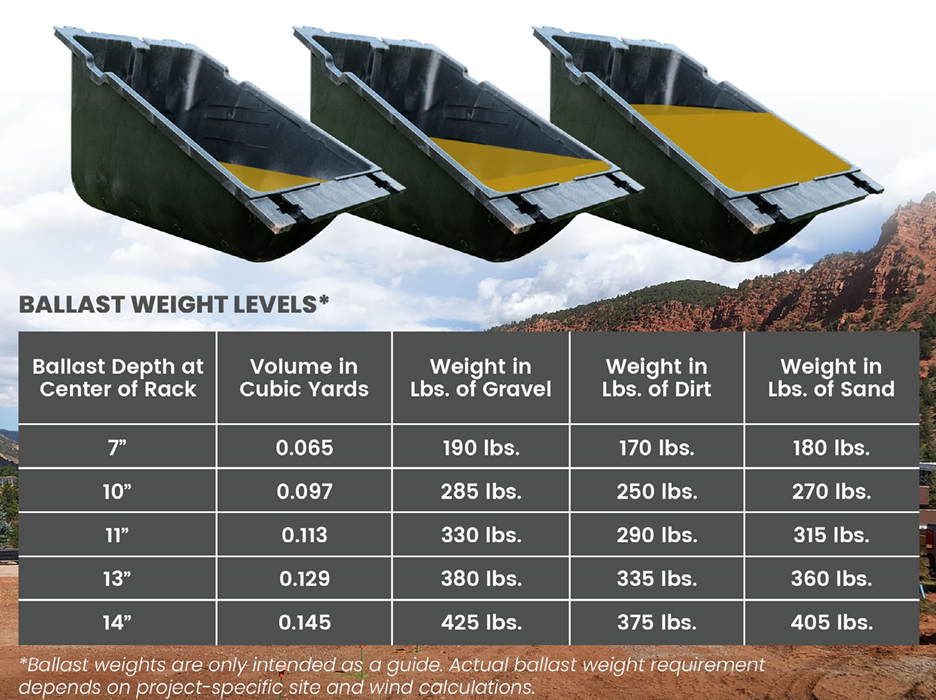

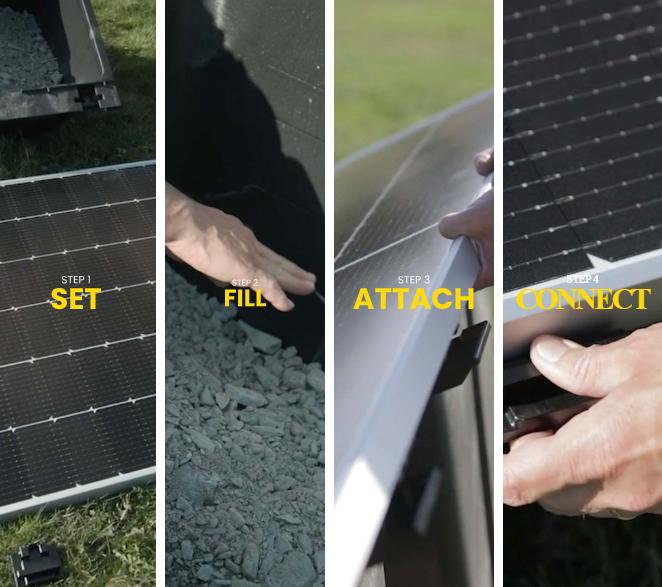

- Simple Installation– no tools, ballasted with any available material

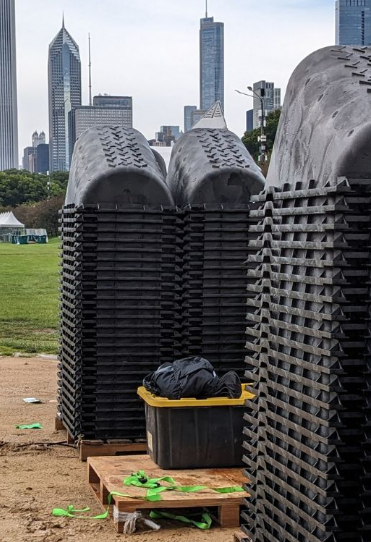

- Rapid Deployment– lightweight, stackable, palletizable for efficient transportation
- Versatile Placement– no ground penetration, requires little to no site preparation

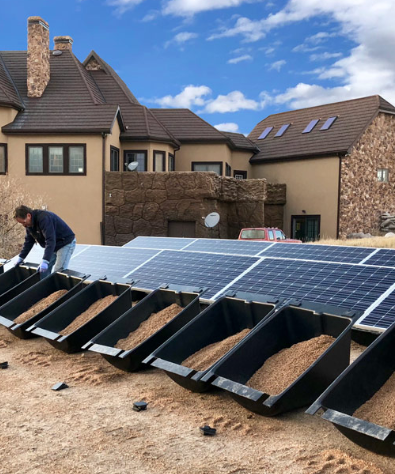

- Multiple Applications– commercial, industrial, residential, agricultural, government
- Durable Construction– high density polyethylene is long lasting and UV/weather resistant
- Validated Performance– wind tunnel tested, field tested at NREL, installations across the US
- Customer Support– design, development, engineering, installation support available
Required Panel Specifications:
- Minimum Width of Module: 37.8"
- Maximum Width of Module: 41.3"

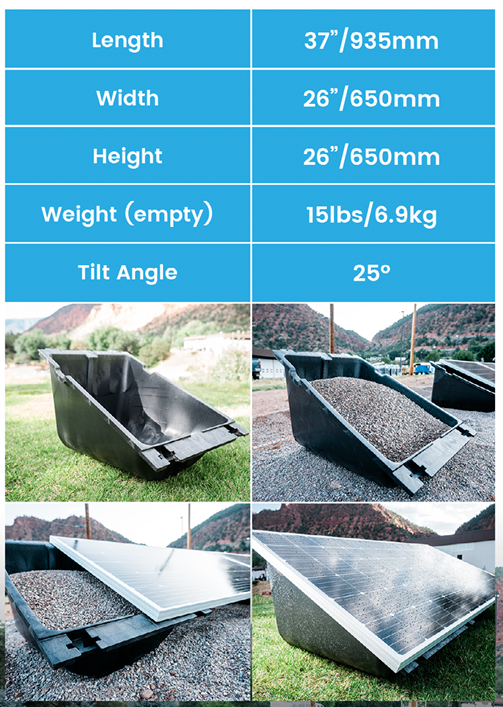

Additional Information:
- Dimensions: 37”L x 26”W x26”H
- Weight (unloaded): 17lbs
- Tilt Angle: 25º
- Wind Load: 120mph (ASCE7-16)
PowerField System Design Tool:
Click here to be redirected to the PowerField System Design Tool (link). This step-by-step tool makes purchasing easy by configuring exactly how many PowerRacks your system requires.
Disclaimer: Every design will result in 2 racks (tubs) per module. Rack sharing designs will be coming soon.
Grounding:
Simplify grounding for your system with the tool-free DynoBond Bonding Jumper.
RESIDENTIAL, PORTABLE, AGRICULTURE, UTILITY, INDUSTRIAL, MILITARY

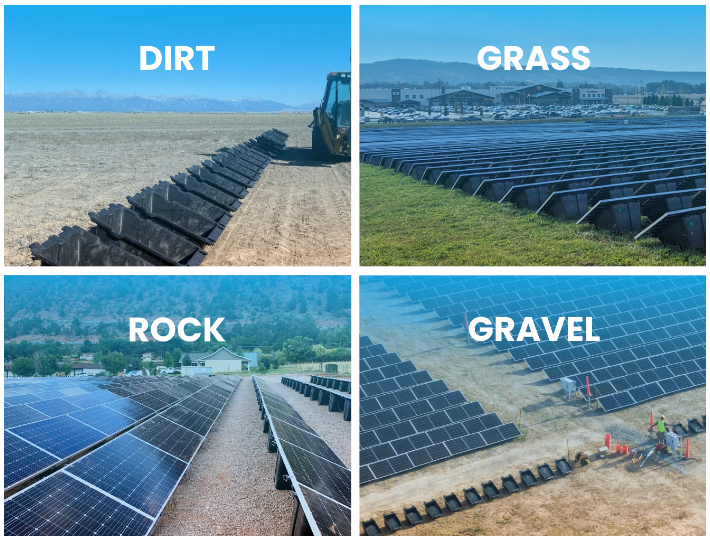

THE BEST OPTION FOR ANY TERRAIN
