Product Description
Fronius 7.7kW Primo Gen24 Inverter 208/240 VAC 1-Phase 260 - 480 VDC MPPT
Model Number: 4,210,143,800
Ready for the private energy revolution: With our Fronius GEN24* inverter at the heart of their private photovoltaic system, households can produce their own energy sustainably and inexpensively. The Fronius GEN24 Plus hybrid inverter even enables a battery storage system to be used, providing complete energy self-sufficiency for electricity, heating, cooling, and e-mobility, even at night.
While the Fronius GEN24 offers an integrated basic backup power supply in the form of the PV Point, the Fronius GEN24 Plus** can also provide a comprehensive Full Backup power supply via a connected battery storage system.
- The heart of private photovoltaic systems
- Fronius UP.storage: Software upgrade from the Fronius GEN24 to the Fronius GEN24 Plus* hybrid inverter
- Fast installation and configuration
- Sustainable development and production
- Made in Europe
Backup power for every situation
Your energy supply must be reliable. That's why the Fronius GEN24 offers an integrated basic backup power supply. Backup power is supplied to connected devices up to 3 kW via the PV Point socket, as long as the sun is shining.
With the PV Point and Full Backup*, the Fronius GEN24 Plus offers two backup power options: a power supply for loads of up to 3 kW via a single socket and a backup power supply for the entire home, including large, three-phase loads such as heat pumps.
Versatility as standard
Thanks to their energy management functions, our inverters continuously save time and money. The smart device design combined with our intelligent software enables fast and flexible installation and delivers optimum yields, even when the PV modules are in the shade. What's more, the integrated active cooling extends the service life of the inverters, securing your customers' investment.
Built-in freedom
The Fronius GEN24 and Fronius GEN24 Plus have been designed so that you can create an independent energy supply for your customers that's as individual as possible. That's why the hybrid inverter has open interfaces. This makes it exceptionally easy to integrate and manage components from Fronius or third-party providers.
Fronius GEN24 and Fronius GEN24 Plus - Advantage as Standard
The Fronius GEN24 and Fronius GEN24 Plus boast a wide range of features that support a sustainable, independent energy supply. Discover the key features for installers and their customers at the click of a button.
Always the right solution: with or without a Plus
With the Fronius GEN24 and Fronius GEN24 Plus, we have two powerful inverters in our product portfolio. Which one you recommend to your customers depends entirely on their needs
Fronius GEN24
Direct use of energy from your customer's photovoltaic system, when the sun is shining
- Self-sufficiency instead of relying entirely on the grid
- Cost savings instead of high energy prices
Use of your solar power
Fronius GEN24 Plus
Greater independence thanks to the battery storage connection
- Flexible use of solar power, day or night
- Even more independence from electricity providers and energy prices
Supply in case of a power supply failure
Fronius GEN24
Backup power when the sun is shining
- PV Point integrated basic backup power function
- Supply of up to 3 kW via a socket
Fronius GEN24 Plus
Enhanced security with two backup power options for every situation
- PV Point for backup power supply via a socket
- Full Backup for reliable backup power for the whole home, even for large loads such as heat pumps
Fronius UP.storage

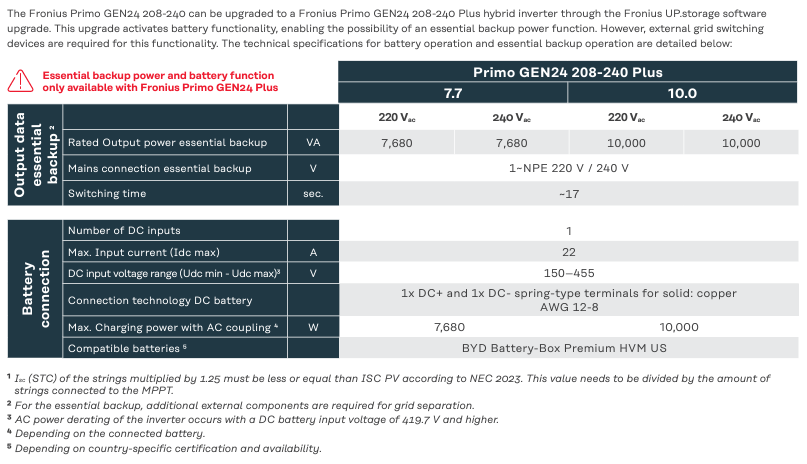

For those who still can't decide: With the Fronius UP.storage* software upgrade for the Fronius GEN24, the existing device can be retrofitted with a battery connection at any time, including the Full Backup option.**
Solar.start - the app by pros for pros
Configure Fronius inverters in just a few minutes: Solar.start makes it easy for you.
Quick and easy commissioning in just three steps
- Network settings
- Product configuration
- Integration into the Fronius Solar.web monitoring platform
- Quick access to the web interface for additional settings and functions
- Full warranty coverage when you register the inverter on Solar.web
- Link to useful platforms such as Solar.web and Solar.SOS
background grey Fronius comes in top for fifth time
Fronius GEN24 Plus and BYD Battery-Box Premium: This combination once again achieves top rankings at the Energy Storage Inspection 2024. The Energy Storage Inspection is carried out annually by HTW Berlin and is considered Europe's most important study on the efficiency of PV storage systems. As part of this inspection, the duo made a great impression for the fifth time in a row thanks to its exceptional efficiency.
Sustainable right from the start
From the initial consultation and installation through to maintenance, the Fronius GEN24 and Fronius GEN24 Plus give installers an advantage right from the start: The sustainable product features such as the use of 100% recycled aluminum in the heat sinks and the repairability of the devices are effective selling points when advising customers. Assembly and configuration are completed in no time, and the option of carrying out maintenance via an app guarantees satisfied customers who can look forward to minimum downtimes and maximum yield.
A life with 24 hours of solar power, is that even possible? Yes! The Anzi family is already living this vision of the future in Niederfullbach, Germany, and relies entirely on quality Fronius products to make it happen. These products transform the power of the sun into electricity, heating, cooling, and e-mobility, enabling the family to live an energy self-sufficient life.
